10 Best Ls Engine Swap Parts: Adapter Plates, Mounts, Headers, And Sensors 2026

⚡ Quick Verdict

📋 How We Evaluated

Evaluation prioritized real fitment details such as crank centerline movement, clearance requirements, included hardware, and stated vehicle compatibility. Build quality signals included CNC billet aluminum, stainless construction, or high-carbon steel with powder coating. Value and user suitability were assessed through what the kit includes for the price, and by how clearly each item targets a specific swap scenario rather than vague “universal” claims.

Material	CNC milled aluminum
Crank Centerline Change	0.17 inches
Clearance Approach	No-grind milled opening for SBC/BBC mount hump
Hardware Included	2 plates, 8 flat head bolts, 6 flange M10-1.5 bolts

What We Found

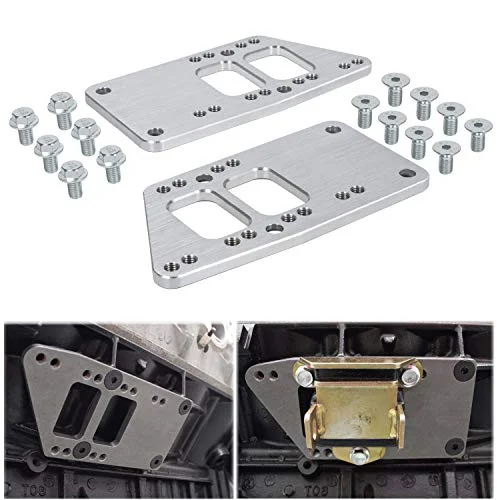

This set of LS swap motor mount adapter plates is aimed at SBC-to-LS installs where you’re reusing small-block Chevy style mounts. The listing emphasizes OEM-spec fitment and uses CNC-milled aluminum for accuracy and durability. In the box you get 2 adapter plates plus the hardware: eight flat head bolts and six flange M10-1.5 bolts. The design is built to help clear the SBC/BBC mount hump by machining the needed opening in the plate center, which is meant to reduce or eliminate grinding. It also lists a crankshaft centerline change of 0.17 inches, and that fixed centerline shift is the kind of detail that tends to matter when you’re trying to keep driveline geometry where it needs to be.

Who It’s For

I would shortlist this if you’re building an SBC/BBC chassis that already uses small-block Chevy mounts and you want cleaner, more predictable fitment than an adjustable system. It’s a good match when you only need that specific centerline change (rather than significant fore/aft relocation), and the included bolt assortment helps for quick test-fit mockups without immediately hunting for mismatched fasteners.

Target Vehicles	1973-1998 OBS/Square Body full-size trucks (2WD/4WD)
Adjustment Style	Slotted for engine placement adjustment
Transmission Support (Listed)	4L60E/4L65E/TH350/TH400/TH700R4/4L80
Material Claim	High carbon cold rolled steel

What We Found

This bracket kit is positioned for 1973–1998 OBS and square-body Chevy/GMC trucks, in both 2WD and 4WD applications. The key feature is adjustment: the mounts are slotted so you can move engine placement during mock-up, which helps with aligning the engine for transmission fitment and getting accessory and exhaust clearance right. The listing supports a range of transmissions, including 4L60E, 4L65E, TH350, TH400, TH700R4, and 4L80, and it claims compatibility with “any other combination” of standard or automatic setups. On the engine side, it lists broad LS coverage—LS1/LS2/LS3/LS6/LS7/LS9 and common 4.8L/5.3L/5.7L/6.0L/6.2L LS family variants within stated years. It also calls out a carbon cold rolled steel build with accurate accessory sizing, which is meant to support stable installation across common truck builds.

Who It’s For

This is best for truck swaps where fixed positioning won’t get you where you need to be—especially when steering clearance, exhaust routing, or transmission choice forces you to fine-tune the engine location. If you’re planning to run common GM automatics and want the ability to dial placement during mock-up instead of relying on a single fixed plate geometry, I would focus here. It also makes sense for budget-conscious builders who still want durability from a steel bracket design.

Material	CNC milled aluminum
Crank Centerline Change	0.17 inches
Clearance Approach	No-grind milled opening to clear SBC/BBC mount hump
Hardware Included	2 plates, 8 flat head bolts, 6 flange M10-1.5 bolts

What We Found

Like the first option, this is an adapter plate kit designed to bolt an LS engine into a vehicle originally set up with small-block Chevy mounts. The listing highlights OEM-spec fitment and again calls out a crankshaft centerline movement of 0.17 inches. It uses CNC-milled aluminum for accuracy and durability claims. The plate design is meant to reduce grinding by milling a clearance opening to work with the SBC/BBC mount hump, and it includes the same core set of install-critical parts: 2 adapter plates, 8 flat head bolts, and 6 flange M10-1.5 bolts. It also notes an included 180-day warranty, which can help buyers during early test-fit and installation planning.

Who It’s For

I would consider this if your goal is a straightforward LS conversion using the existing SBC/BBC-style mounting points and you want correct placement without jumping straight to adjustable brackets. It’s a good fit for daily-driver swaps where priorities are reduced fabrication and keeping everything on schedule during mock-up. If you expect you’ll need more than small placement changes, though, adjustable brackets are likely the better direction.

Product Type	Performance how-to book
Coverage Focus	LS swaps into non-standard vehicles
Format	How-to guide (no technical hardware specs provided)
Compatibility Assurance	None stated in listing

What We Found

This one is framed as a performance how-to for swapping GM LS engines into a wide range of vehicles. The problem is that, based on the provided listing information, it doesn’t include specific product features tied to exact swap parts—no hardware compatibility details, no mounting/bracket specifics, and no sensor thread or header fitment claims to verify. What you can pull from the description is more planning-focused: what to measure, what to adapt, and how to anticipate common obstacles when building an LS swap. A book like this can also help with decision-making around mounts, harness strategy, cooling, and exhaust routing, but the provided info doesn’t confirm anything concrete about fitment for the parts buyers typically need.

Who It’s For

I would point buyers here if they already have some swap parts and want a process-minded overview—especially if you’re trying to avoid planning mistakes like assuming a sensor will plug in without checking thread standards or assuming clearances will automatically work. It can also help when you’re working in a non-standard vehicle where “vehicle-specific” hardware is hard to find. But it doesn’t replace fitment measurement and part compatibility research for mounts, headers, and adapters.

Material	Stainless steel
Header Style	Shorty style
Engine Compatibility (Listed)	LS1/LS2/LS3/LS6/LS7 and 1998-2020 Gen 3/Gen 4 LS engines
Exclusions	Not for LT-style engines and not for vehicles originally equipped with LS

What We Found

These stainless steel shorty-style headers are clearly positioned for LS swap applications, and the listing includes an important “swap-only” warning: they do not fit vehicles originally equipped with LS engines. The fitment section claims universal swap fitment across multiple classic truck and pickup categories, including 73–87 square body C10/C20/C30/K10/K20/K30, 67–72 C10/C20, K5 Blazer, Suburban 73–91, 88–99 OBS C1500 Silverado/Sierra, and S10 pickups. Engine fitment is listed for 4.8L, 5.3L, 5.7L (LS1), and 6.0L/6.2L Gen 3 and Gen 4 LS motors from 1998–2020, while explicitly excluding LT engines from 2014 and newer. The listing also calls out stainless durability and mentions that the kit includes gaskets, bolts, and screws to help with installation convenience.

Who It’s For

I would use this option when you want shorty headers that are meant to work in older GM trucks and classic chassis where clearance can be tight. It suits DIY builders because the listing states the kit includes gaskets and fasteners. It also fits builds using the listed LS engine generations, as long as you’re not mixing in an LT-based setup. If the vehicle was originally LS-equipped, the warning is a clear stop sign—so I’d verify your starting point and also double-check routing and flange compatibility for your exact chassis and steering/suspension layout.

Thread Conversion	M16-1.5 male to 1/8″ NPT female
Material	304 stainless steel
Intended Use	Oil pressure sensors, senders, gauges in LS swaps
Warranty	12-month warranty

What We Found

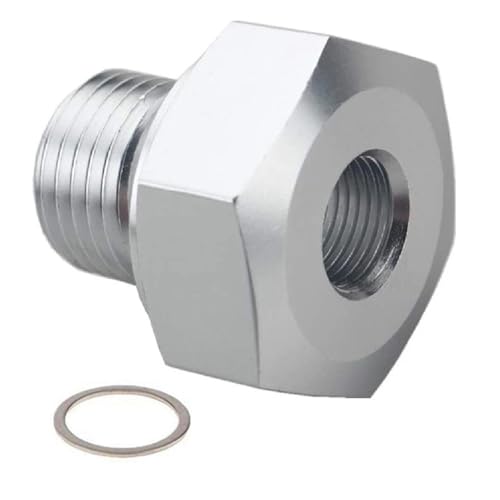

This oil pressure sensor adapter converts an LS engine’s M16-1.5 male port to a 1/8″ NPT female connection, which is the common step when you want to run a sender, gauge, or aftermarket monitoring component that uses NPT threads. The listing targets GM LS series engines including LS1/LS3/LSX and multiple displacement variants such as 4.2L, 4.3L, 4.8L, 5.3L, 6.0L, and 6.2L. It also calls out a compact installation location at the top rear or front accessory drive side of the engine, which can matter in tight swap engine bays. Construction is 304 stainless steel for corrosion resistance, and the conversion is described as precision-machined for a secure, leak-resistant connection. The listing also mentions a 12-month warranty, and it positions the adapter as a way to simplify gauge integration without changing the engine harness.

Who It’s For

I’d shortlist this if your swap plan includes an oil pressure gauge or sender that uses 1/8″ NPT threading. It’s also a good choice when you want to adapt the LS engine’s port to your existing aftermarket setup rather than replacing sensors or trying to reroute everything. Stainless construction helps for underhood durability. Before ordering, I would confirm your gauge/sender thread spec is truly 1/8″ NPT and that the LS port thread type matches M16-1.5 for your engine variant.

Thread Conversion	M16-1.5 male to 1/8″ NPT female
Installation Location (Listed)	Top back or front drive side of LS block
Construction Claim	Sturdy threaded design
Compatibility	All GM LS series engines (thread-based fit)

What We Found

Functionally, this adapter is the same job: convert an LS engine’s M16-1.5 male thread to a 1/8″ NPT female connection. The listing places the installation on the top back or front drive side of the engine block, where you can access an appropriate oil pressure port location. It includes claims like “Never leaked” and “Fits perfectly,” though no test data is provided to back those statements. It also describes an additional 1/8″ NPT taper pipe thread port in the rear of the fitting for common sensors or plumbing fittings. It states compatibility across GM LS engines by supporting the listed thread type. One limitation in the provided details is that it doesn’t list included install hardware like a washer, or any explicit sealant requirements.

Who It’s For

This fits LS swap builds that need an NPT-threaded oil pressure sender/gauge component, especially when you want a simple conversion instead of modifying the engine harness. The top-side positioning is helpful in swap bays with limited access. It also works if you’re planning a custom gauge mounting solution where thread conversion is the key compatibility step. As with any thread adapter, I’d confirm the sender’s exact threading and check whether you’ll also need fittings for the rear port described in the listing.

Engine Port Thread	M12-1.5 coolant sensor port
Output Thread	3/8″ NPT female
Port Depth	1.7 inches
Material	Stainless steel (includes sealing washer)

What We Found

This coolant temperature sensor adapter converts the LS cylinder head’s metric M12-1.5 coolant sensor port to a 3/8″ NPT female connection. It’s aimed at LS and LS-derivative engines and lists several families and suffix codes, including LSX/LS1/LS3 plus LM4, LM7, L76, LQ9, LR4, and others. The intent is to keep original-style sensors while integrating into a swapped LS setup where the rest of your temperature monitoring uses NPT threads. The listing advises measuring sensor length before purchase to help avoid clearance problems like bottoming inside the port. It specifies a stainless construction, a female 3/8″ NPT port, and a stated adapter depth of 1.7″. It also notes threading into the driver-side head near the front or passenger-side near the rear. The package includes one adapter and one sealing washer.

Who It’s For

I would consider this when your swap build uses 3/8″ NPT temperature sensors—like SPAL-style sensors, fan controllers, or mechanical gauge setups that expect NPT threads. It’s especially useful if you need a thread-correct solution without machining the head. Stainless construction and the included sealing washer make it easier to plan an install. I would still verify the temperature sensor thread standard and measure sensor length to prevent contact inside the port.

Target Vehicles	1973-1998 OBS/Square Body Chevy/GMC (2WD/4WD full size trucks)
Adjustment Range (Listed)	2″ forward and 1/2″ back mounting position
Transmission Support (Listed)	4L60E/4L65E/TH350/TH400/TH700R4/4L80
Material Claim	Carbon steel with powder coated surface

What We Found

This adjustable LS swap motor mount bracket kit is targeted at 1973–1998 square body and OBS Chevy/GMC trucks in 2WD and 4WD configurations. The listing focuses on clearance tuning by allowing the engine to move during installation. It states the bracket allows about 2 inches forward and 1/2 inch back mounting position, which gives meaningful fore/aft adjustment for oil pan clearance and transmission alignment. It also lists transmission compatibility across popular GM automatics, including 4L60E/4L65E and TH-series and 700R4/4L80 variants. On engine coverage, it lists LS1/LS2/LS3/LS6/LS7/LS9 plus various truck Vortec and LSX derivatives such as LM7, LR4, LQ4, LQ9, L33, LH6, L92, L76, L99, and others. Build claims include carbon steel with a powder-coated surface intended to resist rust and deformation.

Who It’s For

I would choose this when your build needs adjustable fore/aft movement more than fixed adapter-plate placement. It fits truck swaps where steering clearance, exhaust routing, or driveshaft angles push you to tune engine location. It also suits buyers who are running common GM automatic transmissions and want a bracket that’s designed to accommodate different combinations. Even though the listing is broad, I’d still verify against the exact chassis and drivetrain you’re using, since compatibility spans many engine/transmission setups.

Engine Generation (Listed)	1997-2013 Gen III/IV LS series engines
Vehicle Fitment (Listed)	1973-1987 full-size trucks; 1988-1998 full-size pickups/SUVs; 1977-1993 B-body; 1978-1987 A/G-body
Adjustment Range (Listed)	Up to 2 1/2″ forward, up to 1/2″ rearward
Material Claim	Steel adjustable motor conversion bracket adapter plate

What We Found

This kit is aimed at older GM full-size truck and car builds by supporting LS Gen III/IV engine installs from 1997–2013. It outlines specific vehicle group coverage: 1973–1987 GM full-size trucks, 1988–1998 GM full-size pickups and SUVs, 1977–1993 B-body cars, and 1978–1987 A-body and G-body applications. The key feature is slotted adjustment that allows the engine to move up to 2 1/2 inches forward and up to 1/2 inch rearward from the original bell housing position. The listing also includes a limitation: rearward adjustability may be limited with a low mount alternator setup. It cautions about A/C compressor clearance as well, especially depending on whether you’re using GM truck A/C compressors versus units found on Corvette/Camaro/Cadillac CTS-V. The build is described as steel with precision CNC laser-cut construction.

Who It’s For

This is a good match for projects that need more than minor relocation—especially full-size GM builds where moving the engine forward helps with exhaust and steering clearance. It also suits installs where transmission type and accessory placement make careful mock-up critical. Because rearward adjustment can be limited, I would plan around A/C and certain alternator setups during fitment checks. And if your LS engine falls outside the listed 1997–2013 Gen III/IV range, I’d confirm compatibility before purchase.

What to Look For Before Buying

If you’re shopping for the best LS engine swap parts, my biggest advice is to start with fitment certainty. Focus first on motor mounts or adapter plates that match your chassis mount style and land the engine at the correct crank positioning. From there, pick headers that explicitly say they’re for LS swap applications and verify they match your engine generation (and any stated exclusions). Finally, double-check sensor adapter thread conversions so your gauges, fans, and readings don’t become a leak or wiring puzzle at first start.

Check Match Adapter Type to Your Mounting Goal

Match the adapter style to what your build actually needs. Fixed adapter plates make sense when your chassis already uses SBC/BBC mount locations and you only need correct crank centerline positioning. Adjustable brackets make more sense when clearance forces fore/aft tuning—oil pan proximity, steering interference, exhaust routing, or transmission tunnel fitment. If you don’t have measurements nailed down yet, I would lean adjustable and plan a dry-fit mock-up before final tightening.

Value Verify Included Hardware and Sealing Components

Look closely at included hardware and sealing details, because those are the “small” parts that slow builds the most. Adapter plates should list bolt sizes and threading (like M10-1.5 flange hardware). Sensor adapters should say whether a sealing washer is included or whether you should expect thread sealant to be part of the install. If the kit covers the main install-critical pieces instead of leaving you to source missing fasteners or seals, that’s a real improvement in day-to-day install time.

Rating Look Beyond “Universal” Claims

Don’t treat “universal” as a guarantee—headers and mounts still have category and generation limits. I would prefer listings that spell out the chassis ranges and include explicit exclusions (like LT engines or swap-only warnings). When rating data isn’t available, I would put more weight on the specific fitment language and any installation cautions. That’s usually where the truth is hidden.

Verify Cross-check Threads for Sensors and Gauges

For sensors, cross-check threads before you order anything. Oil pressure and coolant temperature adapters need to match the engine’s port thread and the gauge/sender thread standard (like M16-1.5 vs. M12-1.5, and NPT sizes like 1/8″ or 3/8″). If adapter depth is tight, measure sensor length so you don’t end up with contact or a bad reading. Doing this early helps avoid leaks and inaccurate readings during the first start and fan control setup.

Frequently Asked Questions

What is the most important part to get right in a best LS engine to swap build?

In most LS swap builds, getting the engine mounting hardware correct is the biggest deal because it determines centerline placement and clearance. Adapter plates should specify crank centerline movement and address SBC/BBC hump clearance. If you need more positioning control, adjustable brackets help with fore/aft tuning for oil pan, exhaust, steering, and transmission alignment. After mounting, sensor adapters should match thread standards so you don’t end up with leaks or inaccurate gauge readings.

Do LS swap adapter plates require grinding?

Some adapter plates are designed to clear the SBC/BBC mount hump using a milled opening, which is meant to reduce or eliminate grinding (especially when the listing says “no grinding” or shows that style of clearance). That said, chassis variations happen, so I would still dry-fit and verify alignment before final installation.

Will universal LS swap headers fit an LT engine?

Usually, no. Many “swap only” LS header listings explicitly exclude LT engines because the spacing and fitment requirements can differ. The safer approach is to match the header listing’s stated engine generation range and exclusions. If your engine type isn’t included, assume it won’t fit.

How do oil pressure and coolant sensor adapters help in an LS swap?

LS sensors often use metric threads, while many aftermarket gauges and fans use NPT threads. Thread-correct adapters convert the LS port to the NPT size your sender, gauge, or plumbing requires. When you get the thread conversion right, you improve reliability and reduce leak risk. Always confirm thread size and, when adapter depth matters, sensor length too.

When should adjustable engine mounts be preferred over fixed adapter plates?

I’d prefer adjustable mounts when mock-up measurements show interference or when you need fore/aft relocation for clearance. Common triggers include transmission tunnel fitment, exhaust routing, and oil pan proximity to crossmembers. Adjustable kits also help when you switch between different transmissions or accessory setups. Fixed adapter plates work best when you only need precise centerline positioning without significant relocation.

🎯 Final Verdict

If you’re doing an SBC-to-LS swap and you want accurate, low-fabrication positioning, I would start with the billet-aluminum adapter plates with the no-grind hump clearance design (product 0). They combine precise machining with included hardware and a stated 0.17-inch centerline change that helps reduce mock-up friction. If your truck build needs fore/aft tuning more than fixed placement—especially when transmission choice and clearance require dialing in the engine—then the adjustable bracket kits (product 1 or 8) are the better direction. Overall: choose mounts first, then match headers and sensor adapters to your engine generation and thread standards, and do a dry-fit to confirm clearances before ordering exhaust and sensors.
