10 Aggressive Ls3 Camshaft Kits For Big Power, Idle, And Durability 2026

⚡ Quick Verdict

📋 How We Evaluated

Products were evaluated using cam spec clarity, included valvetrain hardware completeness, and build-oriented details like spring types and retainer materials. Performance potential was judged by duration/lift intent and how well each profile aligns with common LS3 RPM goals. Value also factored in, with Amazon-style rating signals used as a deciding weight when available, though most listings lacked rating data here.

Cam Duration / Lift	235/248 .649″/.615″
Lobe Separation Angle	111 LSA
Timing / Bolt Pattern	3-Bolt Camshaft
Included Pushrod Length	7.400″ chromoly

What We Found

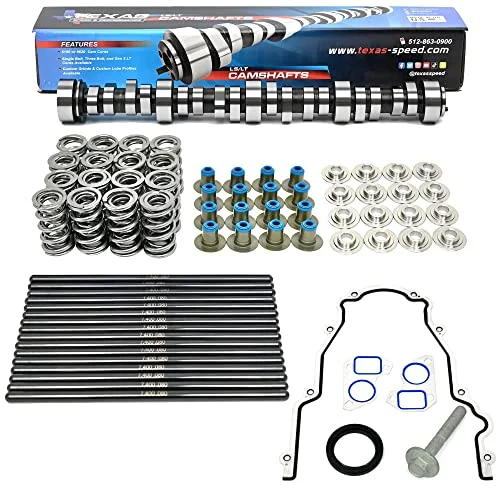

Texas Speed’s TSP LS3 Stage 4 F-35 is aimed at serious naturally aspirated output, using a 235/248 .649/.615 lift profile on a 111 LSA. The listing is clearly written for strong top-end power and higher airflow demand—not an idle-only upgrade. What makes it stand out is the “build-ready” kit approach: it includes a .660 dual spring kit with an integrated one-piece seat and seal, titanium retainers, PAC springs, and 7.400″ chromoly pushrods. It’s also described as a 3-bolt camshaft and includes hardware shown for the water pump, timing cover, and front seal—so it reads less like a cam-only product and more like an actual package for a high-horsepower N/A build.

Who It’s For

I’d shortlist this when you’re building an LS3 for top-end pull and you want the cam plus the valvetrain pieces to be part of the same plan. The Stage 4 intent fits builds that can handle a more aggressive idle/RPM behavior, and the dual spring/titanium retainer setup is meant to support the stability you need as lift and airflow demands rise. It’s also a good pick for shops or DIY builders who prefer one cohesive kit over mixing spring rates, retainers, and pushrod lengths from multiple sources.

Cam Duration / Lift	214/222 .550″/.550″
Lobe Separation Angle	108 LSA
Timing / Bolt Pattern	3-Bolt Pattern
Intended Applications	1999-2013 Gen 3/4 LS 6.0L / 6.2L

What We Found

The Texas Speed & Performance CHOPacabra is positioned as an aggressive truck-style cam with a 214/222 .550/.550 profile and a 108 LSA. It’s a 3-bolt camshaft setup, and the listing describes it as designed to work with LS6 valve springs and a factory torque converter. The listing text also mentions Delphi LS7 lifters and guide trays, which matters if you’re refreshing lifter hardware during the install. One thing to watch: the gasket content shown appears to overlap with a separate head gasket item, which suggests what’s bundled may not be “cam-only” clean. The overall tone is “nasty” and lopey by design, and compared to longer-duration LS3 Stage options, the duration/lift numbers are more conservative—helpful if you want character without chasing maximum peak output.

Who It’s For

This fits LS-based 6.0/6.2 truck builds that want that mean sound and response while still staying closer to factory converter behavior. The 108 LSA and 214/222 durations lean toward drivability sound and throttle feel more than big naturally aspirated horsepower spikes. It also suits owners who expect to keep the converter behavior more stock-like. If your priority is a big NA horsepower peak, I’d look past this toward longer-duration Stage packages.

Cam Duration / Lift	224/24x .618″/.618″
Lobe Separation Angle	114 LSA
Timing / Bolt Pattern	3-Bolt Pattern
Included Pushrods	7.400″ chromoly

What We Found

BTR’s Stage 3 Turbo cam kit is designed for forced-induction LS combinations that need more RPM and airflow than a lower stage. The specs are listed as 224/24x .618″/.618″ on a 114 LSA with a 3-bolt timing gear pattern. The kit includes BTR Platinum dual springs, lightweight titanium retainers, and 7.400″ chromoly pushrods. It also calls out the intent to work with stock rocker arms. That kind of included valvetrain detail matters with turbo cams, because faster spin-ups and higher demands can expose weak spring control. The use of titanium retainers supports durability at higher engine speeds, and the overall direction signals an RPM strategy suited for turbo builds.

Who It’s For

I’d point you here for turbo LS builds that need stability at higher RPM and want a matched valvetrain package rather than piecing parts together. The 114 LSA is a good sign if you’re building toward a broader torque strategy under boost while still wanting RPM headroom. It also helps that the listing states compatibility across several common LS displacements and LS families, which makes it easier to keep the project parts coherent.

Cam Duration / Lift	221/24x .619″/.617″
Lobe Separation Angle	113 LSA
Timing / Bolt Pattern	3-Bolt Pattern
Included Pushrods	7.400″ chromoly (kit options)

What We Found

BTR’s RED HOT LS3 cam is aimed at LS3 and rectangle port LS engines in both boosted and naturally aspirated applications. The advertised specs are 221/24x .619″/.617″ with a 113 LSA, along with a note about 3-bolt cam setup when converting from a 1-bolt arrangement. The listing claims excellent power gains over Stage 2 PDS and LS3 centrifugal profiles even with less intake duration, and BTR ties the design to in-house lobes plus dyno and spintron testing for durability/stability claims. As part of the kit options, it references different spring/retainer choices (including titanium options), plus a gasket kit bundle shown in the listing. Pushrods are listed as 7.400″ chromoly. That kit-option breadth makes it easier to choose based on your RPM targets and budget, as long as you confirm which version you’re getting.

Who It’s For

My shortlist for this is LS3 builds that want a strong all-around profile without jumping straight into Stage 4 harshness. The 221/24x duration with a 113 LSA is a street-leaning signal while still aiming for meaningful top-end pull. It’s also a natural fit when you’re blown and want the cam timing support without over-tightening the strategy with an ultra-aggressive LSA. If you go kit-option route (steel vs titanium retainers, etc.), it’s mainly about matching the build’s RPM expectations and drivability preferences.

Cam Duration / Lift	221/24X .619″/.617″
Lobe Separation Angle	113 LSA
Intended Use	NA and Blower LS Setups
Engine Families	Gen III/IV LS, LS1/LS2/LS3

What We Found

Dynosty’s listing for the BTR Red Hot LS cam repeats the core profile for Gen III/IV LS engines, including LS3: 221/24X with .619″/.617″ lift and a 113 LSA. It also frames it for naturally aspirated and blower setups and emphasizes that Brian Tooley Racing designed the lobes and that it’s made in the USA. Compatibility is broad across several displacements and LS families. What’s missing in the listing as written is clarity on shipped kit components—this reads more like a camshaft listing than a fully build-ready bundle. That matters because cam swaps often hinge on whether you already have the correct springs, retainers, and pushrods. With the information shown, I’d treat it primarily as cam-only and focus on whether your supporting valvetrain pieces match the lift/duration demands.

Who It’s For

I’d aim this at buyers who already have the springs/retainers/pushrods sorted and just need the camshaft itself. It’s a good fit for NA or blower projects where you want the Red Hot profile characteristics, and the wide displacement compatibility is convenient for multiple swap-style builds. DIY builders can benefit here too—just make sure you confirm valvetrain compatibility before assembly, since the listing doesn’t clearly spell out the kit contents.

Cam Duration / Lift	227/24x .636″/.636″
Lobe Separation Angle	111.5 LSA
Timing / Bolt Pattern	3-Bolt Pattern
Primary Use	Naturally Aspirated LS3

What We Found

BTR’s LS3 Stage 3 Naturally Aspirated Camshaft V2 is aimed at a mid-to-upper RPM power curve with an aggressive idle feel. The specs shown are 227/24x .636″/.636″ on a 111.5 LSA with a 3-bolt pattern. The listing leans on spintron and engine dyno testing to support power output while maintaining valvetrain stability and durability standards. It also includes a specific expectation: a claimed 70 horsepower gain at peak when paired correctly, which sets it apart from mild “sound upgrade” territory. A very installer-friendly point is that it claims you won’t need flycutting pistons with OEM LS3 combustion chamber size. It also notes that automatic applications need an aftermarket stall converter.

Who It’s For

This is a fit for LS3 owners who want a real performance step on naturally aspirated setups without going fully into Stage 4 territory. I’d see it as a good match for manual cars and street builds that still get normal driving—not just wide-open-throttle runs. The flycutting claim (for OEM LS3 chambers) reduces setup complexity, but the automatic-transmission note means you’ll want to plan for a stall converter if you’re not in a manual.

Cam Duration / Lift	230/244 .629″/.615″
Lobe Separation Angle	112 LSA
Included Spring Set	.660″ dual springs
Engine Head Type	Rectangle Port LS (LS3-style)

What We Found

Michigan Motorsports’ Stage 3 LS3 Drift Cam is clearly aimed at aggressive street and drift use for rectangle port LS engines. The specs are 230/244 .629″/.615″ with a 112 LSA, and the kit is described as a drift-focused Stage 3 profile. The package includes polished .660″ dual springs, titanium retainers, valve seals with integrated spring locators, keeper locks, and 7.400″ chromoly pushrods. It also includes a set of gaskets for timing cover and water pump, a front crankshaft seal, and a wet sump damper bolt. It’s designed for rectangle-port applications across LS3-style heads including LS3, L99, L92, L96, and LY6 platforms in 6.0L and 6.2L. The marketing leans into a chopped idle feel and midrange hit, which is exactly the kind of tradeoff you make when you build for style and controllable response rather than quiet cruising.

Who It’s For

I’d recommend this for drift cars, track weekends, and weekend builds where you want that hard-hitting midrange feel and a chopped idle that matches the driving style. It also makes sense if you’re specifically on a rectangle-port LS3-based platform and you want the cam plus the key valvetrain pieces bundled. If your priority is smooth commuter drivability, you’ll likely want a less aggressive LS3 stage.

Cam Duration / Lift	229/244 .629″/.615″
Lobe Separation Angle	112 LSA
Timing / Bolt Pattern	3-Bolt Cam
RPM Use Intent	3000 RPM+

What We Found

Texas Speed’s Stage 2 LS3 cam targets a mid-duration power band with a drivability-first approach. It lists 229/244 .629″/.615″ on a 112 LSA and uses a 3-bolt camshaft for LS3, LSA, and L92 rectangle port families. The description puts it in the “power from 3000 RPM+” range, which generally lines up with a cam that favors torque and street behavior over ultra-extreme idle characteristics. It also calls out that automatic vehicles require at least a 2,600 RPM stall converter. The listing references new LS3 cam development using a Superflow 902 engine dyno and a brand new LS3 crate engine, supporting the idea that it’s not just a repack of older profiles. Compared with Stage 3 and Stage 4, this should keep more usable manners while still giving you noticeable idle lope and power gains.

Who It’s For

I’d put this in front of LS3 owners who want improvement you can feel without turning the car into a hard-to-live-with setup. The 229/244 duration on a 112 LSA is a good match for NA builds aiming for power from roughly 3,000 RPM up. For automatics, the 2,600 RPM stall guidance is part of the deal—without it, the cam’s powerband may not show up when you need it. The 3-bolt design is also helpful for LS3/L92 rectangle port builds because it reduces install confusion if your setup matches that requirement.

Cam Duration / Lift	229/244 .629″/.615″
Timing / Bolt Pattern	3-Bolt
Intended Head Compatibility	LS3, LSA, L92
Kit Includes	Dual valve springs, seals, titanium retainers, pushrods, hardware

What We Found

Texas Speed’s Stage 2 LS3 cam kit builds on the same 229/244 .629″/.615″ 3-bolt profile and presents it as a more complete valvetrain solution. The listing explicitly includes dual valve springs, seals, titanium retainers, spring seats, pushrods, and supporting hardware. It frames the fit around LS3, LSA, and L92 cylinder heads and positions the cam for both naturally aspirated and forced-induction use. The focus is on midrange torque and top-end horsepower while retaining street drivability, and it promises a distinct cam lope plus proven gains when paired with intake, headers, and tuning. The biggest missing detail from what’s visible is the exact pushrod length and the full conversion/bolt-pattern notes beyond “3-bolt,” so you’ll still want to verify compatibility for your exact application before ordering.

Who It’s For

This is the better buy for people who don’t want to chase down the “right matching” springs and seals. I’d shortlist it for both NA and supercharged/forced-induction LS3 builds that want the Stage 2 character without turning the job into a parts-matching project. Shops that standardize kits will also like the included hardware approach. Just make sure the pushrod length and full fitment details match your engine and head setup.

Cam Duration / Lift	226/231 .610″/.609″
Lobe Separation Angle	113 LSA
Timing / Bolt Pattern	3-Bolt
Included Pushrods	7.400″ 5/16 chromoly .080 wall

What We Found

BTR’s Stage 2 Turbo cam kit is built around adding RPM for turbo applications, with platinum dual springs and titanium retainers plus 7.400″ chromoly pushrods. The specs are listed as 226/231 .610″/.609″ with a 113 LSA and a 3-bolt timing gear pattern. The description frames it as the next step beyond Stage 1 for light cars pushing limits with S400-equipped combinations. The spring package includes polished duals, locator pieces for stock guides, locks, and seals, and it’s designed for stock rocker arms. Titanium retainers are used to help with high-speed control versus steel-only setups. Pushrod specs are also specific—5/16 chromoly with .080 wall at 7.400″ length—so turbo-focused buyers have fewer unknowns when planning the install.

Who It’s For

This kit is for turbo LS builds that want more RPM than a Stage 1 profile while keeping a coherent valvetrain package. The 113 LSA supports a performance-focused torque curve without going overly extreme on overlap strategy. It’s also suited to setups that plan to keep stock rocker arms and are building for responsiveness—especially for track launches and pull-focused driving. If you’re naturally aspirated-only and chasing low-RPM street smoothness, it’s less aligned with that goal.

What to Look For Before Buying

When I’m picking the best LS3 camshaft, I start by sorting the build into naturally aspirated, boosted, or drift-style—because the right stage depends on how high you’ll run the engine and what you want the idle to feel like. From there, I narrow candidates using cam specs (duration and LSA) and then I pay close attention to whether you’re buying a cam-only product or a true kit. The best listings spell out the supporting parts—springs, retainers, seals, pushrods, and any platform-specific gaskets—so you’re not forced into last-minute matching. Finally, I treat compatibility as mandatory: confirm the timing gear bolt pattern, automatic converter needs, and piston-to-valve clearance for your exact short block and head work. After that, value is easier to judge when the contents are clear.

Check Match Cam Specs to Your RPM and Goals

Duration and LSA are what shape where the engine wants to make power. For example, a Stage 2 229/244 .629/.615 on a 112 LSA typically aims for power from roughly 3,000 RPM up. Stage 3 and Stage 4 options usually shift the powerband higher and can cost you some idle smoothness. I’d pick the cam based on where your car actually spends its time, not just the “biggest number” on the box.

Value Choose a Kit That Includes the Right Valvetrain Parts

Cam-only purchases can turn into surprise add-ons. I look for kits that include dual springs, titanium or steel retainers, seals, and pushrods. If a listing names pushrod length (like 7.400″), that’s a strong signal it’s easier to plan the install. Also, when lift rises past .615″ in these kinds of builds, spring compatibility and setup details matter more than people expect—so don’t assume.

Rating Use Rating and Listing Clarity as a Buyer Signal

A lot of listings don’t show ratings clearly, so the spec and wording become your main “signal.” When reviews exist, I’d prioritize ones that mention install success and tune results. But even more than ratings, I’d check whether the listing clearly states what’s included in the shipment and what bolt pattern/timing gear setup applies. Vague “fits LS3” text is less useful than specific, repeatable details.

Verify Confirm Bolt Pattern, Converter, and Clearance

I’d verify the cam’s bolt pattern up front—like whether it requires a 3-bolt timing gear arrangement. If it’s an automatic, converter stall becomes part of the cam’s effectiveness: too little stall and the car can feel lazy off the line. And piston-to-valve clearance still matters even when a listing claims OEM chamber compatibility, especially if there’s any milling, deck changes, or head work involved. If you’re not checking clearance for your exact build, you’re gambling.

Frequently Asked Questions

What cam spec best balances street drivability and power on an LS3?

A Stage 2-style profile like 229/244 .629/.615 on a 112 LSA is often the sweet spot: it targets stronger midrange torque while staying more usable than higher stages. These grinds usually favor driving from roughly 3,000 RPM up, and for automatics you typically want enough stall to keep the engine in the powerband. Final drivability still comes down to tuning and supporting airflow.

Do LS3 cam kits always include springs and pushrods?

No. Some listings sell cam-only products, while others bundle the valvetrain hardware you need. If it’s truly a kit, the listing should spell out dual springs, retainer material, seal type, and pushrod length (plus any relevant gaskets). Always confirm the shipped contents before you order—mismatches can force expensive rework.

Is a 3-bolt camshaft required for every LS3 build?

Not automatically. Many LS3 setups use a 3-bolt timing arrangement, but some swaps or starting configurations may require a conversion depending on what your engine originally uses. I’d verify the timing gear bolt pattern against your exact vehicle and short block. Doing that upfront prevents install-stopper mistakes.

How important is converter stall with an LS3 cam upgrade?

It matters because cam upgrades often shift power higher in the RPM range. A listing for a Stage 2 cam typically implies a minimum stall around the lower end of the 2,600 RPM neighborhood for automatics. Without enough stall, the engine may not build boost/torque where you need it at launch. Matching stall, gearing, and tune keeps the car feeling responsive.

How should piston-to-valve clearance be handled?

Piston-to-valve clearance depends on cam timing events, lift, and your exact piston and cylinder head setup (including any milling or deck changes). Even when a listing claims no flycutting for OEM LS3 chamber compatibility, you should still confirm clearance for your specific build. Use the correct method and measure/check through your exact configuration so you don’t assume clearance where it hasn’t been verified.

🎯 Final Verdict

If you’re after the best LS3 camshaft for serious naturally aspirated power, I’d pick the Texas Speed TSP LS3 Stage 4 F-35. It pairs 235/248 .649/.615 with a .660 dual spring kit and titanium retainers, and the included hardware details reduce the most common cam-swap weak points. If you want a more street-friendly upgrade instead of the most aggressive Stage 4 route, the BTR LS3 Stage 3 N/A V2 is the better alternative thanks to its stability-focused approach and its claim of avoiding piston flycutting on OEM LS3 chambers. Either way, confirm bolt pattern and clearance for your exact setup, then plan on a proper tune to realize the gains.
