10 Best Ls Swap Engine Fitment Parts: Mounts, Wiring, Oil Pan, And Cooling Adapters 2026

⚡ Quick Verdict

📋 How We Evaluated

Evaluation prioritized build quality signals like CNC machining, steel construction, and durable finishes. Fitment accuracy mattered most, including stated adjustment range and clearance notes like hump-milling and engine placement geometry. Value and suitability were assessed using what the listing claims to include, and Amazon rating signals were treated as unknown where no rating data appears.

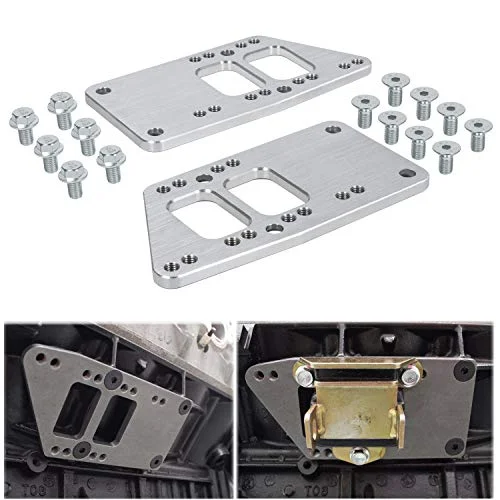

Material	CNC milled aluminum
Included Adapter Plates	2 x adapter plates
Centerline Change	Crankshaft centerline up 0.17 inches
Clearance Feature	Center opening milled for SBC/BBC motor mount hump

What We Found

These LS swap motor mount adapter plates are aimed at the classic SBC/BBC-to-LS fitment problem: getting the engine bolted in without turning the install into a grinding session. The listing points to CNC-milled aluminum construction for more accurate geometry. It also spells out what’s in the box: 2 adapter plates plus flat head bolts and flange M10-1.5 bolts, which can help avoid the “missing hardware” runaround. One detail I liked is the mention of the “necessary opening” milled out to clear the hump on the backside of SBC/BBC motor mounts. The listing further specifies that the plates move the crankshaft centerline up 0.17 inches, giving you a measurable placement change instead of a vague “fits fine” claim. Compatibility wording is broad across the LS variants it lists, so it’s positioned as a do-the-math adapter rather than a one-off custom machining job.

Who It’s For

I would shortlist these if you’re doing an LS swap into an SBC/BBC chassis that still uses factory-style small block mounts, and you want predictable mount geometry. They make the most sense when your existing mounts land close to the plate pattern and you’re not trying to completely redesign engine location. If your swap plan requires major transmission mounting changes or you’re already expecting to push the engine far from the provided centerline change, these fixed placement adapters may not be the limiting factor in a bad way—but they won’t solve every clearance issue on their own.

Vehicle Compatibility	1973-1998 OBS and square body 2WD/4WD trucks
Engine Compatibility	LS1/LS2/LS3/LS6/LS7/LS9 and listed Vortec variants
Material	High carbon cold rolled steel
Transmission Compatibility	4L60E/4L65E/TH350/TH400/TH700R4/4L80

What We Found

This bracket set is built for 1973–1998 OBS and square body Chevy/GMC trucks. The listing leans on adjustable, slotted positioning for engine placement in the engine compartment, and it frames the kit as intended for eliminating clearance issues during an LS swap. It also calls out transmission fitment across several automatics—4L60E/4L65E, TH350, TH400, TH700R4, and 4L80—which is helpful because mount position often changes with the transmission combination. On the engine side, it claims coverage for multiple LS families (including LS1 through LS9 and common displacement truck variants), so it reads like a “covers the common LS swap choices” mount rather than something narrow. One limitation: the provided text doesn’t clearly list hardware contents, so I’d treat included hardware as something to double-check on the product page before assuming it’s complete.

Who It’s For

This is the kind of kit I’d point a truck owner toward if you’re converting an OBS/square body platform and need slotted adjustability to clear steering, accessories, or chassis components. I’d also consider it if you’re planning an automatic swap using one of the listed transmission families. If your engine bay already matches LS mounts perfectly, you may not need the adjustability. And because the hardware details aren’t stated here, whether it’s a smooth install or not will depend on what’s actually included in the package you receive.

Application Window	1955-1987 GM rear-sump RWD applications
Oil Pan Material	Cast aluminum
Max Crankshaft Stroke	4.25 inches
Sump Capacity	5.5 quarts (about 6 quarts total with stock oil filter)

What We Found

This retrofit aluminum oil pan kit is focused on classic GM rear-wheel-drive setups from 1955–1987 that originally used a small block or big block Chevy with a traditional rear-sump oil pan. The listing is explicit about exclusions—it calls out that it’s not for 5.3L Gen IV configurations. It also mentions the factory dipstick is incompatible, which doesn’t necessarily stop the engine from running, but it does affect how you measure oil level after installation.

Functionally, the kit is designed to work in an LS swap layout that needs rear-sump geometry clearance and, importantly, the listing says it works with a full length windage tray. It states maximum crankshaft stroke clearance of 4.25 inches and a 5.5-quart sump capacity, with about 6 quarts total using the listed stock filter approach. The text also references oil filter models you need to use, which is another big “buy decision” factor because it impacts compatibility more than people expect.

Who It’s For

I’d shortlist this for classic GM chassis swaps where oil pan shape and chassis clearance are the main constraints. It fits best when you’re working with an LS Gen III/Gen IV V8 in an RWD layout originally built around a rear-sump setup. It’s also a better match if you’re comfortable doing the mock-up and oiling-system validation steps rather than expecting a “drop-in” measurement solution. If you want a simple dipstick measurement method without planning for an alternate measuring approach, this kit likely isn’t the right starting point.

Engine Compatibility	LS1/LS2/LS3/LS6/LS7 plus listed truck 4.8-6.2L
Material	Aluminum
Installation Support	Instruction manual included (digital if needed)
Accessory Packaging Change	PS pump moved upward/inward; alternator rotated 180 degrees

What We Found

This aluminum serpentine bracket conversion is all about accessory packaging for LS swaps—especially when you’re dealing with tight engine bays. The listing covers compatibility for LS1 through LS7 engines and 4.8L to 6.2L truck/SUV engines, and it frames the goal as reducing the width of the frame/engine compartment area. It says an instruction manual is included, and that if it’s missing you can request a digital version.

The install notes point out two common installation methods shown in the product pictures. Because bracket composition and belt winding methods can change the belt length requirement, the listing doesn’t lock you into one belt size. The standout functional detail is how the alternator bracket affects accessory layout: it moves the power steering pump upward/inward and rotates the alternator 180 degrees. That’s the kind of change that can directly solve steering-rail or hood-clearance interference in older vehicles. The listing also describes the bracket material as aluminum and positions it as durable.

Who It’s For

I’d shortlist this when your swap is being limited by accessory width or alternator/power steering interference—common issues in older cars and trucks where everything has to fit under a stock hood line. If your build needs repositioning instead of full custom fabrication, this kind of conversion is worth considering. The manual inclusion helps reduce install uncertainty, but the belt-length flexibility means you’ll still want to plan for measuring/mock-up so you can source the correct belts for your exact method and setup.

Material	Stainless steel
Header Style	Shorty style
Intended Use	LS swaps only (not OEM LS vehicles)
Engine Exclusions	Does not fit LT style engines 2014 and newer

What We Found

These stainless steel shorty headers are positioned as LS-swap-only, not a general replacement part. The listing calls out that they do not fit vehicles originally equipped with LS engines, which is important if you’re expecting “bolt-on to any LS car.” Fitment coverage is described across a long list of square body and OBS GM trucks and S10-style applications. On the engine side, it specifically lists LS engine support for 4.8L, 5.3L, 5.7L (LS1), 6.0L, and 6.2L, covering Gen 3 and Gen 4 LS motors in a 1998–2020 window. It also states they do not fit LT-style engines from 2014 and newer.

A practical detail: the kit includes gaskets plus bolts/screws, which can help avoid slowing down the install with missing small parts. Since the build is stainless, it’s also aimed at corrosion resistance for long-term under-hood exposure.

Who It’s For

These headers make sense for builders routing exhaust around older engine bays during an LS swap into a legacy GM chassis. I’d use them when your swap is using Gen 3/Gen 4 LS engines and your truck/vehicle exhaust packaging can’t work with stock LS-style routing. The included gaskets and hardware point toward a more DIY-friendly install. I’d be less interested if you’re doing an LT-style engine swap or if your vehicle already came with LS-style exhaust routing. Also, because “universal” still has limits, I would verify engine generation and vehicle clearance during mock-up, especially around downpipe and steering areas.

Vehicle Compatibility	1978-1988 G-body
Adjustment Range	Up to 1/2 inch forward and up to 1 inch rearward
Bracket Material	High-strength steel, precision-cut 1/4-inch laser
Bushings	Polyurethane bushings for vibration reduction

What We Found

This maXpeedingrods LS swap adapter kit targets 1978–1988 G-body platforms, including Monte Carlo LS conversion scenarios. It uses adjustable, slotted mounts to deal with clearance and fitment issues rather than forcing one rigid engine position. The listing claims reduced interference during installation and—more importantly—states geometry movement: the mounts can move the engine up to 1/2 inch forward and up to 1 inch rearward from the original bell housing position.

Unlike “plates only” solutions, the listed kit contents are more complete: 2 mount plates, 2 frame mounts, mount bolts, motor mount bolts and washers, and hex nuts. The material claims focus on high-strength steel with a precision-cut 1/4-inch laser cut bracket and polyurethane bushings aimed at reducing vibration and corrosion. That combination reads like the kit is meant for both durability and ride comfort, not just positioning on a one-time install.

Who It’s For

I’d look at this kit if you own a G-body and want meaningful adjustability without custom fabrication. It fits best when engine placement affects clearance to steering, frame, or accessories—especially for 1978–1988 Monte Carlo and related platforms. The forward/rear movement claim is useful for aligning the driveline. It’s also relevant for builds that want LS1 through LSX/LQ9-type flexibility. If your project already lands perfectly in the available space, you may not need that adjustment range.

Transmission Type	4L60E DBW
Wiring Style	Standalone plug-and-play harness
Power Routing	Four-wire hookup (switched, constant, and grounds)
PCM Compatibility	GM 0411 (12200411 referenced)

What We Found

This 4L60E DBW standalone wiring harness is designed for LS engine swaps using a GM LS1 Vortec-style setup in the 1997–2004 range. The listing emphasizes a straightforward plug-and-play approach with only four wire hookup areas, including switched power, constant power, and grounds. It also mentions a sliding grommet seal for neater, leak-proof routing, and it provides a guidance-style length measurement—about 4 to 5 feet from the rear cylinder head area to the PCM mounting point under the dashboard.

On compatibility, the listing calls out drive-by-wire injector setups and states it fits 12–14 volt systems. It includes engine and transmission sensor connectors plus EV1 fuel injector connectors, along with Green/Blue PCM connectors and a TAC module connector reference. It also mentions a GM PCM 0411 compatibility context and references a MAF. The listing includes a warning about using incorrect injector types and recommends professional installation if you’re not comfortable confirming the injector/connector ecosystem.

Who It’s For

I’d recommend this harness if your swap uses a 4L60E DBW transmission and the injector/connector setup matches what the harness is built for. It’s the most “reduce wiring surprises” option in this list because it’s standalone and includes connector types instead of just being a collection of loose wires. The under-dash PCM mounting guidance helps keep routing practical. It also lines up best with the referenced GM PCM family. It’s less suitable if your build uses EV1-incompatible injectors or a non-DBW configuration—because connector mismatch can turn wiring integration into extra labor.

Product Type	Performance how-to book
Content Details	Not provided in listing excerpt
Compatibility Coverage	General LS swap planning (exact scope not specified)
Install Deliverable	Guidance and education only

What We Found

This listing is for a how-to book titled “LS Swaps into Anything: How to Swap GM LS Engines into Almost Anything (Performance How-to).” The provided content doesn’t list specific features, format details, diagram count, or edition information, so there’s no way to verify what you actually get beyond the title. Because of that, it doesn’t offer the concrete component specifications that hardware products do—like sensor thread conversions, oil pan capacities, or mounting geometry.

That said, a book can still be useful as background planning: parts sequencing, mock-up logic, and common swap pitfalls are the kind of stuff that helps even if you’re sourcing hardware elsewhere. But it can’t be evaluated for fitment accuracy, compatibility guarantees, or performance outcomes the way the mounting, pan, and harness items can.

Who It’s For

I’d point to this if you’re planning an LS swap and want conceptual guidance—more like a checklist mindset than a specific “buy this part” answer. It’s a helpful support resource when you’re deciding the order of operations and trying to understand how systems interact in different vehicles. It can also be useful during mock-up planning because understanding the bigger picture matters. The drawback is that, without edition/content details here, you can’t judge how actionable it will be for your exact build. It also isn’t a replacement for vehicle-specific mounting, wiring, or oiling hardware decisions.

Thread Conversion	M12-1.5 (LS head) to 3/8″ NPT
Material	Stainless steel
Adapter Depth	1.7 inches
Included Parts	1 adapter and 1 sealing washer

What We Found

This stainless coolant water temperature sensor adapter is made for LS swap builds where the coolant sensor port on the engine doesn’t match the thread standard of the gauge, fan controller, or relay setup you’re using. The listing explains that LS cylinder heads use a metric M12-1.5 coolant sensor port and that this adapter converts that to a 3/8” NPT female thread. It also states the adapter is 1.7 inches deep, with an explicit recommendation to measure the sensor before purchasing so you don’t get surprised by length/fit issues.

Installation placement is described as driver-side near the front or passenger-side near the rear, aligning with common LS coolant sensor locations. The kit includes the adapter and a sealing washer, which is the kind of small detail that can prevent post-swap warning-light headaches. Even though it’s a small component, it targets the kind of compatibility mismatch that can affect overheating warnings and fan control behavior.

Who It’s For

This is a good pick when your swap uses NPT-thread gauges, electric fans, or controllers and you need a clean thread-correct connection without cobbling together mismatched adapters. It’s especially useful if your wiring diagrams assume NPT sensor inputs but your LS head port is metric. It also has strong practical value for builds using common fan/temperature sensor kits that are designed around NPT. I would be cautious if your chosen sensor expects a thread size other than 3/8 NPT or if the 1.7-inch depth won’t physically seat due to clearance constraints around where the sensor ends up installed.

Vehicle Compatibility	1973-1998 OBS and square body Chevy/GMC 2WD/4WD
Mount Adjustment	2 inches forward and 1/2 inch back
Transmission Compatibility	4L60E/4L65E/TH350/TH400/TH700R4/4L80
Construction	Carbon steel with powder coated surface

What We Found

ForoGore’s LS conversion engine swap mounts are aimed at 1973–1998 OBS and square body Chevy/GMC trucks, with explicit mention of 2WD and 4WD. The kit uses an adjustable bracket design meant to support multiple automatic transmission fits, including 4L60E/4L65E, TH350, TH400, TH700R4, and 4L80. Fitment coverage also lists many LS engines and variants in the LS/LQ4/LQ9 family area.

A key geometry claim is that the setup allows 2 inches forward and 1/2 inch back mounting position. That range is more flexible than many fixed adapter plate approaches, which matters when hood clearance, accessory interference, or driveline alignment varies by year and configuration. The listing also describes carbon steel construction with powder coating for rust-resistant use. What’s missing in the provided text is hardware inclusion detail, so the real install completeness would need confirmation from the full listing.

Who It’s For

I’d shortlist this kit for OBS and square body builders who need flexible engine placement to solve clearance issues that don’t show up until you’re mocking things together. It fits swaps where steering, accessory packaging, and chassis differences vary by truck configuration. The stated 2-inch forward and 1/2-inch back adjustment can help you dial in hood clearance and driveline alignment during mock-up. It also aligns well if you’re considering multiple automatic transmission options. Value will depend on hardware and bracket thickness consistency, which is something I’d verify on the full product page before committing.

What to Look For Before Buying

If you’re choosing the best LS engine for swap parts, I’d start with fitment—engine and transmission first—then look at how each part changes engine placement. After that, I focus on build quality clues like material claims, machining detail, and whether the kit actually includes the hardware you’ll need. When ratings exist, I use them as a secondary signal, but if ratings or pricing aren’t listed clearly, I treat that as a prompt to double-check the compatibility specifics instead of assuming it’ll be fine.

Check Match your swap platform and mounting geometry

Match the swap to the platform that the part is actually written for. Confirm the vehicle years, body style, and drivetrain layout, then verify whether you’re looking at an adapter-only part or a full mount/frame-mount kit. I would also look for explicit engine placement geometry—things like crank centerline rise or forward/back movement—so you can plan mock-up and clearances. Even with “no grinding” claims, mock-up time is still the safest move.

Value Prioritize kits with complete included hardware

Included hardware changes the install experience more than most people expect. Compare what’s in the box: bolts, gaskets, pickups, seals, and any required small components. For an oil pan kit, I’d expect pickup and baffle-related items—not just a pan shell. For a wiring harness, I’d want connectors for the PCM and transmission side that match your setup.

Rating Use rating signals, but don’t ignore listing specificity

No ratings don’t automatically mean a part is wrong, but it does mean you should lean harder on listing specificity. Prefer products with clear specs—thread sizes, oil capacity, adjustment ranges—over vague compatibility claims. If ratings exist elsewhere, I would treat repeat fitment mentions as more useful than star averages alone. Also, missing pricing and ratings matter more when the part affects drivability, not just appearance.

Verify Validate electrical and sensor thread compatibility

For electrical parts, confirm DBW vs DBN, injector connector type, and PCM part-family compatibility. For adapters, verify thread conversions and depth clearance so you don’t end up with a sensor that won’t seat or seals that can’t compress. Sensor adapters should include the sealing hardware and match the gauge/controller input standard. If anything looks off, measure sensor length and verify the head port thread before you order.

Frequently Asked Questions

What part creates the biggest “surprise” during an LS swap?

Motor mounts and oiling clearance. They change engine placement, and that affects steering clearance, hood fit, and driveline angles in ways that can show up quickly once you’re mocked up. Wiring surprises are often next, when connector ecosystems or DBW/DBN assumptions don’t match. I’d tackle mounts and wiring first because they drive so many downstream fitment decisions.

Are universal LS swap headers truly universal?

They’re “universal” in the sense that they cover many swap scenarios—not that they fit every configuration without caveats. Always confirm LS engine generation support (Gen 3/Gen 4 LS versus LT) and pay attention to swap-only language. If the listing says it doesn’t fit LT-style engines or vehicles originally equipped with LS exhaust routing, that’s a strict boundary. Then verify steering and downpipe clearance during mock-up.

How can wiring harness selection go wrong?

The biggest misses are mismatched PCM family, incorrect injector connector type, or using the wrong DBW/DBN setup for the transmission. Some listings also imply a specific PCM mounting location and a sensor set. I would confirm the transmission type, injector connector style, and the harness’s PCM connector references before buying. If compatibility isn’t crystal clear, professional installation helps reduce the risk of incorrect pinouts.

Do oil pan retrofit kits require additional changes beyond the pan?

Often, yes. Many kits require planning for oil filter selection and dipstick measurement because the stock dipstick or filter won’t work the same way after the swap. Some setups also need careful pickup tube alignment depending on engine layout. Even with windage tray compatibility and capacity specs listed, you still want to validate oiling alignment during mock-up.

What should be checked for coolant sensor adapters?

First, verify the thread conversion: the LS head metric thread standard versus the target NPT size. Then check adapter depth clearance so the sensor can seat properly without bottoming or fouling. If your sensor length is critical, measure it before ordering. Use the included sealing washer and inspect for leaks after the first warm-up.

🎯 Final Verdict

My top pick is the CNC aluminum LS Swap Motor Mounts Adapter Plates because the listing directly addresses the common SBC mount hump clearance issue and specifies a measurable crank centerline rise of 0.17 inches. That kind of stated geometry helps you plan the swap instead of chasing problems after the engine is bolted in. For electrical integration, the runner-up in this list is the 4L60E DBW standalone wiring harness if your build matches the 4L60E DBW setup and the referenced GM PCM connector ecosystem. In general, I’d start with the mounts and wiring to prevent cascade fitment problems, then work outward to headers, pans, and sensors.
