10 Ls Swap Engine Essentials: Adapter Mounts, Oil Pan, Harness, Headers 2026

⚡ Quick Verdict

📋 How We Evaluated

Evaluation focused on build quality claims like CNC milling, material type, and hardware completeness, plus stated fitment details. Performance relevance centered on mounting geometry, adjustability range, and clearance language such as no-grind design and oil pan maximum clearance. Value considered package contents and whether Amazon-style rating signals exist in the provided data; since ratings were missing for all items, suitability relied on specific compatibility notes and installation complexity.

Material	CNC milled aluminum adapter plates
Mounting Change	Crankshaft centerline moves up .17 inches
Included Components	2 adapter plates, 8 flat head bolts, 6 flange M10-1.5 bolts
Design Intent	No grinding for a flush fit via center opening

What We Found

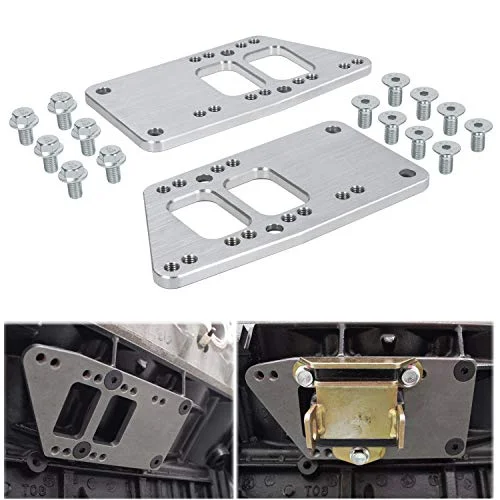

This adapter-plate kit targets the exact mounting problem most LS swaps run into: getting an LS family engine bolted into an SBC-based engine bay using the existing mount approach. The plates are described as CNC-milled aluminum for dimensional accuracy and a predictable fit. The design includes a center opening intended to clear the hump area on the backside of SBC/BBC motor mounts, and the listing specifically calls out a no-grind, flush-fit goal. Hardware coverage is clear for a pair of plates: 2 adapter plates plus 8 flat head bolts and 6 flange M10-1.5 bolts. Fitment notes spell out support for LS1 through LS6 (and several LQ/L92/L99-style variants listed), and the listing also states the crankshaft centerline moves up by .17 inches—useful information when you’re planning clearance around the rest of the chassis.

Who It’s For

I would shortlist this for builders putting an LS engine into an SBC or BBC chassis that’s staying on small-block-style mounts. If you’re trying to avoid grinding and want something that promises a more direct install path, the no-grind claim and the stated centerline change make it easier to plan the swap. That said, if you’re being extremely strict about driveshaft angles, I’d still measure everything before final welding or torque—.17 inches can be helpful, but it doesn’t replace mock-up checks.

Vehicle Fitment	1973-1998 OBS / Square Body 2WD and 4WD full-size trucks
Engine Compatibility	LS1/LS2/LS3/LS6/LS7/LS9 and listed truck 4.8L-6.2L variants
Transmission Compatibility	4L60E, 4L65E, TH350, TH400, TH700R4, 4L80
Construction Claim	High-carbon cold rolled steel

What We Found

This mount bracket system is built around adjustability for 1973–1998 OBS and square-body Chevy/GMC trucks. The key feature is slotted adjustment so you can fine-tune engine placement once the motor is mocked up in the bay. The listing supports a broad range of LS engines, including LS1/LS2/LS3/LS6/LS7/LS9 and multiple GM truck displacement families from the 4.8L up to the 6.2L group. It also lays out a transmission compatibility list that includes 4L60E, 4L65E, TH350, TH400, TH700R4, and 4L80 combinations, which matters on builds where you’re not swapping to a single “default” gearbox. The installation guidance in the listing readout is fairly light, but the overall intent is pretty clear: stability with adjustment rather than a fixed adapter plate.

Who It’s For

This is a good fit if your chassis clearances aren’t uniform and you need to shift positioning during mock-up—steering, cooling layout, and header/exhaust routing can all change what “fits” in the real world. It also makes sense for square-body/OBS owners running common 4L60E or TH-series automatics where small changes in engine location can help driveline alignment. I’d use this when you plan to measure, set the engine, and only then lock things down.

Material	Stainless steel construction
Style	Shorty headers
Engine Fitment	4.8L-6.2L LS (Gen 3/Gen 4 1998-2020) excluding LT 2014+
Install Kit	Includes gaskets, bolts, and screws

What We Found

These shorty-style stainless headers are marketed specifically for LS swaps—meaning they’re intended for swap applications rather than vehicles that originally came with an LS-style setup. The listing frames them as “universal” across a range of classic GM truck and SUV platforms, including configurations like 73–87 square-body C10/C20/C30 and multiple Blazer/Suburban/OBS Silverado/Sierra/S10 setups. On the engine side, the fitment callout focuses on LS 4.8L/5.3L/5.7L (LS1) and 6.0L/6.2L Gen 3 and Gen 4 LS motors from 1998–2020, and it explicitly says they do not fit LT engines newer than 2014. The listing also reinforces the swap-only intent with a warning that they don’t fit vehicles that were originally equipped with LS-style engines. Stainless construction is included for corrosion resistance and durability, and the header approach is positioned as DIY-friendly, with gaskets/bolts/screws mentioned in the kit information.

Who It’s For

This is best for builders who don’t want to reverse-engineer a custom exhaust path just to get something that clears. The “swap-only” warning is important—make sure you’re buying the version that matches your chassis conversion and you’re not assuming it works like a factory LS exhaust would. I’d pick these for classic GM trucks and SUVs where space is tight and a shorty header can help you maintain clearance around the frame and steering.

Application	1955-1987 GM RWD small-block/big-block rear sump conversions
Material	Cast aluminum low profile oil pan
Capacity	5.5 quarts sump; about 6 quarts with stock oil filter
Package Includes	Pan, gasket, baffle, pickup tube, sump plug, filter stud, oil passage cover, gaskets, bolts

What We Found

This retrofit oil pan kit is aimed at 1955–1987 GM rear-wheel-drive applications that originally ran a small block or big block Chevy and a rear-sump oil pan layout. It’s listed for LS swap use with multiple LS families, with an explicit note that it is not for a 5.3L Gen IV setup. The pan is described as low profile cast aluminum to improve chassis clearance and reduce weight claims. The listing includes a few functional planning details: a maximum crankshaft stroke of 4.25 inches, a 5.5-quart sump capacity, and about 6 quarts total when used with the stock oil filter. The package contents call out multiple components you’ll want for installation and proper oil control, including the pickup tube, sump baffle, plug, filter stud, and oil passage parts and gaskets. One practical fitment warning is important: the factory dipstick is noted as incompatible with the retrofit pan, so if you need accurate measurement, you’ll have to plan on a dipstick/tube solution.

Who It’s For

I’d use this when your chassis oil pan clearance is the pacing item in the LS swap—especially if you’re keeping a rear-sump style setup and trying to maximize under-chassis space. The dipstick incompatibility makes it best for builders who are planning measurements and oil level setup early instead of assuming the factory tube still works. It’s also helpful for builds that plan around a full-length windage tray, per the kit’s design note.

Product Type	Performance how-to book (Swap guide)
Edition	2nd Edition
Coverage Claim	LS swaps into almost anything (as described by title)
Included Items	No parts listed

What We Found

This listing is a book—”LS Swaps into Anything: How to Swap GM LS Engines into Almost” (2nd edition)—not a hardware component. The problem for buyers trying to evaluate the “best LS swap engine” parts is that the listing provided no feature list, page scope, or chapter coverage details. That means the practical value is mostly inferred from what swap guides typically include: planning sequence, wiring strategy concepts, and common chassis adaptation pitfalls. But for a product-focused buying decision, there aren’t any hardware-level specs or parts guidance details here—so you can’t really judge whether it’ll specifically help with mounting geometry, header routing, harness pinouts, or oil pan selection for your build.

Who It’s For

This is best for DIY builders who already have most parts and just need a structured roadmap to reduce missed steps. I’d use it if the biggest risk on your project is doing things in the wrong order, skipping compatibility checks, or not understanding the general flow of PCM, mounting, cooling, and exhaust planning. If your goal is a parts decision—what to buy for mounts, oil pan, headers, or harness—this should be supplemental rather than your main reference.

Vehicle Fitment	1978-1988 G-body including Monte Carlo LS conversions
Engine Compatibility	LS1/LS2/LS3/LS6 and listed LQ4/LQ9 families
Adjustment Range	Up to 1/2 inch forward and up to 1 inch rearward
Included Items	2 mount plates, 2 frame mounts, 8 mount bolts, motor mount bolts and washers, hex nuts

What We Found

This maXpeedingrods adapter kit targets 1978–1988 G-body applications, including scenarios where someone is converting a Monte Carlo to an LS setup. The design uses adjustable, slotted conversion mounts intended to reduce clearance and fitment issues during installation. The listing claims measurable repositioning: the engine can move up to 1/2 inch forward and up to 1 inch rearward from the original bellhousing position. It also describes the kit materials as high-strength steel and references precision-cut/laser-cut construction claims, plus polyurethane bushings aimed at vibration reduction and corrosion resistance. In terms of what’s included, the package list mentions mounts and frame mounts along with mounting hardware such as hex nuts and bolts. Fitment is tied to multiple LS engine families (LS1/LS2/LS3/LS6 and referenced LS/LQ/LQ9-related displacements including 4.8L–6.2L).

Who It’s For

I’d put this on the shortlist for G-body owners who need measurable adjustment rather than a fixed adapter outcome. Adjustable slots are especially useful when steering linkage, header choice, or exhaust routing pushes the engine out of the nominal position you expected. It also fits builds using common LS engines paired with four-speed auto combinations where alignment matters. As always, I’d verify that your final engine location still gives you the cooling and accessory clearance you need—not just driveline clearance.

Transmission Type	4L60E DBW
Engine Fitment	GM LS1 Vortec 4.8L/5.3L/6.0L (1997-2004 listed)
PCM Compatibility	GM 12200411 (0411) with TAC module and listed connectors
Installation Claim	Plug-and-play with sliding grommet seal; 4-5 feet harness length

What We Found

This wiring harness is marketed as a standalone solution for 4L60E DBW setups paired with GM LS1 Vortec 4.8L engines from 1997–2004 (with listed support including 4L60E DBW requirements). The listing says it’s plug-and-play with four wire hookups, including switched power, constant power, and grounds. Physically, it describes a sliding grommet seal and roughly 4–5 feet of harness length from the rear of the cylinder head to where the PCM is located under the dashboard. Material claims mention copper-core wiring with insulation that’s resistant to chemicals and temperature, which is at least aligned with what you’d expect from a dedicated swap harness. Compatibility details are the big point: it’s not for EV1 injector configurations and it’s specified for 12–14 volts. The listing also calls out DBW and injector connector compatibility (mentioning EV6 injector connectors) and references a specific PCM part number commonly referred to as 0411 (12200411), plus TAC module/throttle actuator connector ecosystem details. It also claims certain accessories are included, like PCM connectors and an MAF connector, and it references the included connector types that match this setup.

Who It’s For

This is a strong pick if you want to reduce wiring chaos and you’re using a 4L60E DBW transmission with the correct PCM family. It’s aimed at swaps that keep the GM-style DBW pedal/sensor ecosystem in place. It’s also for installers who are comfortable with basic wiring integration—power/ground routing and PCM mounting—rather than trying to adapt a mismatched harness. If your injectors/PCM don’t match the stated connector and PCM part number ecosystem, the listing is clear that you should avoid it.

Product Type	Swap guide book
Subject	GM LS-Series Engines
Purpose	Complete swap guidance (as described by title)
Details Provided	No specific features or coverage listed

What We Found

This “GM LS-Series Engines: The Complete Swap Guide” (2nd edition) listing doesn’t provide any meaningful product information beyond its title. There’s no scope, wiring depth, chassis adaptation detail, or edition-specific content description. Without those specifics, I can’t evaluate how useful it is for a particular LS swap plan—at best it fits the broad expectation that swap guides typically cover planning checklists, part selection, and general integration topics. But because the listing doesn’t include what’s actually inside, it reads more like a general educational reference than something you can judge as a build-critical purchase. For buyers focused on the “best LS swap engine” parts, there aren’t any hardware fitment details here.

Who It’s For

This is best for readers who want background context before choosing parts. If you’re a beginner building a mental framework around mounting, cooling, fuel, and wiring integration, it could help. It’s also useful if you want something you can reference while planning. But if your goal is a decision on mounts, oil pans, headers, or harness compatibility, I’d treat it as supplemental—not primary guidance.

Vehicle Fitment	1973-1998 OBS and Square Body C/K trucks (2WD and 4WD)
Engine Compatibility	Broad LS series list including LS1-LS7/LS9 and listed variants
Transmission Compatibility	4L60E, 4L65E, TH350, TH400, TH700R4, 4L80
Adjustment Range	2 inches forward and 1/2 inch back mounting position

What We Found

This ForoGore LS conversion motor-mount bracket kit is focused on adjustable engine placement for 1973–1998 OBS and square-body Chevy and GMC trucks. The listing calls out compatibility with a wide range of LS engines, including LS1/LS2/LS3/LS6/LS7/LS9 and GM truck variants from the 4.8L–6.2L range, along with a longer list of referenced engine codes (including LSX/LQ family mentions). The bracket is described as providing adjustable mounting to help eliminate clearance and fitment issues. It also includes transmission compatibility with several common automatics such as 4L60E, 4L65E, TH350, TH400, TH700R4, and 4L80. The main technical advantage stated here is adjustment range: up to 2 inches forward and 1/2 inch back. Construction is described as carbon steel with a powder-coated finish aimed at rust prevention and durability claims.

Who It’s For

I’d recommend this for square-body/OBS owners who need measurable repositioning—especially when exhaust, steering, and cooling clearance drive where the engine ends up. The stated forward/back movement can help when different engines or accessory setups shift package dimensions. It also makes sense for LS swaps paired with common TH/4L automatic transmissions where alignment changes matter. I’d still plan to measure driveshaft angles and shifter clearance after final adjustment, not just during initial mock-up.

Material	CNC milled aluminum adapter plates
Mounting Change	Crankshaft centerline moves up .17 inches
Included Hardware	2 adapter plates, 8 flat head bolts, 6 flange M10-1.5 bolts
Warranty	180-day warranty (as stated)

What We Found

This adapter-plate listing is essentially a close match to the first adapter-plate product, but with a shorter feature description and a warranty mention. The listing repeats the core function: bolting an LS series engine into a vehicle originally using small-block Chevy mounts with the existing mount approach. The plates are described as CNC milled aluminum, and it again includes the center opening intended to clear the hump on the backside of SBC/BBC motor mounts, supporting a no-grind flush-fit concept. The crankshaft centerline movement is also stated as .17 inches. The package content includes 2 adapter plates plus 8 flat head bolts and 6 flange M10-1.5 bolts with M10 threading. The one extra detail here is an “180-day warranty” claim, which may reduce risk a bit, even though the listing still doesn’t provide much deeper warranty information.

Who It’s For

This is a good option if you want a fixed adapter-plate solution without chassis trimming and you prefer CNC aluminum plates for consistent geometry. It’s aimed at SBC/BBC-equipped vehicles using a standard mount layout that lines up with that hump-clearance design. The .17-inch centerline change can help with planning accessory and exhaust clearance, and the stated warranty window is a nice bonus. If you want a direct alternative to the first adapter plate kit, this is the one I’d compare first.

What to Look For Before Buying

The best LS swap engine parts come down to matching what you’re installing with how your chassis is built and what driveline goals you have. I’d start with the mounts: confirm whether the kit is fixed or adjustable, and whether it’s designed to clear common SBC mount humps without grinding. Next, check the oil pan side—sump location and how the dipstick or pickup fitment will work in your chassis. Then move to exhaust: prioritize swap-only headers and verify engine generation exclusions. Lastly, if you’re adding a standalone wiring harness, match the PCM/injector/DBW ecosystem before you commit.

Check Verify engine mount geometry for your chassis

Check the mounting geometry first. Decide whether you’re using adapter plates or slotted adjustable mounts, then look for specific geometry notes like crank centerline movement and whether the listing claims no-grind fitment. Compare your exact SBC/BBC mount style and hump location to the clearance approach described. I would measure engine-bay clearance before you torque anything, especially around steering components and exhaust routing.

Value Price value comes from package completeness

I treat “package completeness” as a value factor. Kits that include the hardware you need—bolts, brackets, and the typical installation pieces—save you from extra sourcing. Oil pan retrofit kits should ideally include the pickup, baffle, and the oil passage/gasket pieces you’ll need, not just the pan shell. Wiring harness listings should clearly call out PCM/sensor connector coverage and what’s included in the box. Missing components often turn into more cost than the price difference between kits.

Rating Use compatibility details when rating data is missing

When ratings aren’t available, I’d lean on explicit compatibility notes. For harnesses, match the PCM part number/connector family and injector connector type, plus DBW vs non-DBW requirements. For headers, confirm the swap-only intent and any engine-generation exclusions (like the listing differences between LS and LT setups). For mounts, verify vehicle year ranges and transmission compatibility lists.

Verify Plan for dipstick, filter, and clearance interactions

Plan around dipstick, filter, and clearance interactions early. Oil pan conversions can change where the dipstick tube sits and may require filter model changes to avoid chassis interference. Headers can alter exhaust routing and heat management clearance around frame and steering. If you’re using adjustable mounts, set them with final driveline angle targets in mind—not only based on first mock-up. Keep notes on your measurements so wiring, exhaust, and cooling decisions stay consistent as the build progresses.

Frequently Asked Questions

What parts matter most for the best LS swap engine result?

For the best LS swap outcome, mounts are usually the deciding factor because they determine whether the engine sits in the correct location and clears the chassis. Oil pan selection can make or break both clearance and oiling components like the pickup/filter fit. Headers influence exhaust routing and heat management, and a correct standalone wiring harness prevents small mismatches from turning into a wiring job.

How can compatibility be checked quickly for LS swap mounts?

I’d start with the vehicle platform and year range, since most bracket designs are targeted to specific GM body generations. Then confirm the mounting approach—whether it’s for an SBC/BBC chassis using existing small-block-style mounts or a different mount point style. After that, check the transmission compatibility list and any adjustability range claims. Finally, verify engine code coverage and measure clearance during mock-up before you commit.

Do LS swap headers require swap-only fitment?

Often, yes. Swap-only headers are designed around the routing and clearance constraints you run into during swaps. Factory-LS vehicles can have different crossmember, steering, and exhaust layouts, so the factory routing assumptions don’t always translate. The “does not fit LT” note also matters because LT exhaust port geometry differs.

What should be confirmed before buying an LS standalone wiring harness?

Confirm DBW vs non-DBW requirements and injector connector type (for example, EV1 vs EV6). Match the PCM part number or connector ecosystem the harness listing specifies. Also verify that your 4L60E control needs match what the harness supports. Finally, plan for power/ground integration and where the PCM will mount so the install stays clean and reliable.

Why do oil pan kits mention oil filter and dipstick changes?

Oil pan geometry can require a specific oil filter profile to clear the chassis components. Dipstick tubes often don’t line up with retrofit pans, so measurement can be inaccurate unless you update the dipstick/tube setup. Some kits also warn about pickup tube alignment depending on how the LS engine is positioned. These notes help prevent dry-start issues and keep oil level readings accurate.

🎯 Final Verdict

My top pick is the CNC-milled billet aluminum adapter plate kit because it addresses the most common LS swap mounting interference with a center opening and a stated no-grind flush-fit goal. It also includes a clearly defined .17-inch crank centerline change, which helps with clearance planning. If you’re building an OBS or square-body truck and you need more positioning flexibility, the adjustable bracket runner-up is the better direction since it provides slotted setup across common transmission combinations. Either way, I’d prioritize mounts first—then lock in oil pan and header clearance details before you finalize your wiring plan.
