10 Garage-friendly Ev Charger Placement And Models With Wi‑fi And Smart Scheduling 2026

⚡ Quick Verdict

📋 How We Evaluated

Each charger gets judged on build quality and protection ratings, plus whether the listed power output fits common garage electrical setups. Performance factors include real maximum charging rates, adjustable current options, and cable practicality for typical parking positions. Value gets weighed against certification signals like UL/ETL/ENERGY STAR and the presence of smart control, then judged by overall user suitability for plug-in versus hardwired garages.

Charging Power	Up to 9.6kW
Max Amps	40A
Connector Type	NEMA 14-50 plug (J1772 EV side)
Weather Rating	IP66 & NEMA 4

What We Found

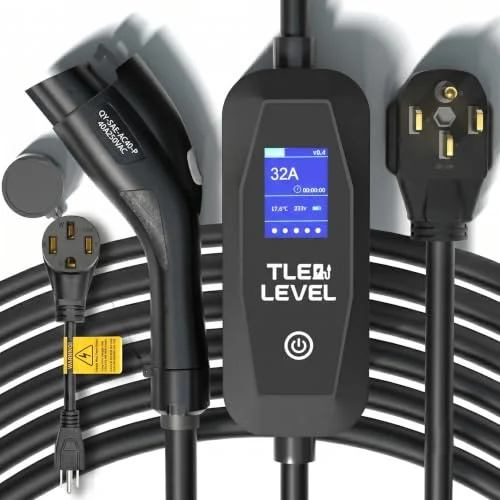

The TLE LEVEL Level 2 portable charger is built around fast, at-home charging without asking you to immediately move to a hardwired wall unit. It offers up to 9.6kW at 40A and includes selectable current settings from 8A to 40A, which is useful when you’re trying to match the charger to your existing circuit. A 2.4-inch LED screen supports scheduled charging, so you can aim for off-peak hours. The included 25-foot cable helps with reach when your EV charge port sits farther back or when garage parking isn’t perfectly aligned. It’s rated for tough conditions (IP66 and NEMA 4 protection), which matters in damp, dusty garages. It plugs into a NEMA 14-50 outlet, includes a storage bag, and lists a 2-year warranty.

Who It’s For

This is for garage setups that already have a NEMA 14-50 outlet. It also makes sense if you want scheduling and a longer cable reach, but you’d rather avoid a hardwire installation. The adjustable current range appeals if you’re balancing EV charging with other garage loads. The 25-foot cable is a helpful buffer when the charge port isn’t close to the outlet. It’s intended for J1772-based charging, and Tesla drivers should plan on the appropriate J1772 adapter approach.

Level 2 Output	240V, 16A (up to 3.84kW)
Level 1 Output	120V via NEMA 5-15 adapter
Connector Options	NEMA 6-20 plug + NEMA 5-15 adapter
Protection Approach	Over-temperature reduction and suspension

What We Found

The eTimxon 16A portable Level 1 & 2 charger combines two charging paths in one unit. For Level 2, it uses a fixed NEMA 6-20 plug at 240V and 16A (up to 3.84kW). For Level 1, it relies on the included NEMA 5-15 adapter for 120V charging, with guidance that some setups require manually adjusting current for safety. It includes a delay timer and lets you set current before charging starts. The charger also provides protection behavior tied to heat and safe operation, plus it’s ETL certified. The main tradeoff is speed: its 16A Level 2 output is slower than higher-amp chargers, which can mean longer charging time for larger battery packs.

Who It’s For

I’d shortlist this for garages with a NEMA 6-20 outlet where you want a convenient portable option. It’s especially relevant for drivers who don’t always need a full same-day charge. The dual-level design helps when 240V isn’t available, letting you fall back to 120V charging with the included adapter. The 25-foot cable gives you more placement flexibility inside the garage. It can also work well for renters or anyone moving between locations because it’s not tied to one wall install.

Level 2 Max Output	240V, up to 3.84kW
Level 2 Connector	NEMA 6-20P plug
Level 1 Adapter	Includes NEMA 5-15 adapter
Weather Rating	IP66

What We Found

The VEVOR Level 1 & 2 portable charger is centered on adjustable current and straightforward everyday use. It supports Level 2 charging at 240V using a NEMA 6-20P plug up to 16A (up to 3.84kW). It also supports Level 1 charging at 120V using the included NEMA 5-15 adapter. A key feature for placement and electrical safety is that you can choose 12A or 16A to match your breaker capacity, which helps reduce the risk of nuisance trips. Scheduling is handled through an LCD screen. On the compatibility side, it targets J1772 EVs and PHEVs, with a note that Tesla models should be handled with the right adapter strategy. It includes safety protections such as surge protection and leakage fault detection, and the control box is IP66 rated with an operating range listed down to -22°F and up to 122°F.

Who It’s For

This fits well when you want portable flexibility but still want Level 2 speed—especially if your garage has a NEMA 6-20 outlet. It’s a good option for drivers who like to tune current before charging. The 25-foot cable is meant to support flexible placement, including when your outlet and charge port aren’t perfectly aligned. Its J1772-first approach makes it a match for most North American EVs and PHEVs. Tesla owners should plan around adapter compatibility before ordering.

Max Output	Up to 48A (240V Level 2)
Charging Speed Claim	Up to 46 miles/hour
Connectivity	WiFi (2.4 GHz)
Connector Standard	SAE J1772

What We Found

The Emporia Level 2 charger with a J1772 connector is designed around the most common “best garage location” goal: a safe, permanent mounting spot near the power route. It’s a hardwired setup delivering up to 48A, which Emporia positions as roughly 9x faster than a standard wall outlet. That higher output is meant for drivers who charge frequently and want less downtime. It uses WiFi on a 2.4 GHz network for real-time energy data and remote scheduling through the app. Installation is hardwired (and professional installation is recommended for best results), which also helps keep the cable off the floor. The listing emphasizes safety and compliance coverage, including UL listing and ENERGY STAR certification. It also remains compatible with a wide range of J1772 EVs across North America. For garages that see snow, rain, or dampness, hardwiring can also reduce how often you’re plugging and unplugging in less-than-ideal conditions.

Who It’s For

This is a strong pick for homeowners who want maximum charging speed and a cleaner garage setup. The 48A output suits drivers who charge daily and prefer not spending extra time at the charger. If you like tracking usage and setting smart schedules, the real-time reporting and app control fit that style of ownership. J1772 compatibility covers many popular EV brands. It’s especially a good choice when your garage layout supports a clear hardwired whip location and dedicated circuit planning near where you park.

Max Amps	48A
Smart Feature	PowerSmart load balancing
Energy Insight	Includes Emporia Vue
Installation Options	NEMA 14-50 plug or hardwired

What We Found

The Emporia Pro Level 2 charger with PowerSmart focuses on a real garage limitation: charging quickly without exceeding your home’s electrical capacity. PowerSmart is meant to balance load using your existing panel so charging can run at the maximum safe rate. That matters when other evening circuits (HVAC, ovens, and similar loads) can be running at the same time. Like the other Emporia pick, it supports scheduled charging and real-time tracking through the Emporia app. It also includes the Emporia Vue for home energy insights. For installation, it supports either a NEMA 14-50 plug option or a hardwired connection, which can help depending on what’s already available in your garage. The placement advantage here is similar to other hardwired designs: a permanent wall location can reduce cable clutter and floor trip hazards. The listing also highlights durability support and US-based support.

Who It’s For

I’d point you to this if you want near-maximum Level 2 speed but you don’t have room (or desire) for expensive panel upgrades. It fits households that see heavier use in the evening while charging. The smart load management matters most if your daily usage patterns shift. If you already have a NEMA 14-50 outlet, the plug-in setup can be attractive; if wiring can be routed for hardwiring, that also supports a cleaner placement near the vehicle. This is a strong choice for J1772-compatible EV owners looking for efficient daily charging without constantly thinking about your panel capacity.

Input Power	120V
Max Amps	15A
Connector Type	NEMA 5-15 plug (J1772 EV connector)
Weather Rating	IP65

What We Found

The Lectron Level 1 EV charger is aimed at simpler overnight charging using 120V. It uses a NEMA 5-15 plug with a 16-foot charging cable and includes a J1772 cable. With 15A output, it supports faster Level 1 charging compared to lower-amperage 120V options, and the brand estimates an extra 40–50 miles overnight. Safety information includes ETL certification and FCC labeling, along with protections like overvoltage, overcurrent, and short-circuit protection. It’s also rated IP65 for dust and water resistance, which fits everyday garage or light outdoor exposure. The limitation is power: Level 1 isn’t meant to replace Level 2 when you need a faster turnaround.

Who It’s For

This is best for garages that don’t have a 240V outlet available, or for situations where temporary charging convenience matters more than speed. It fits drivers with short daily mileage who can charge overnight for their routine. The portable setup can also be handy if you’re traveling or switching between charging locations. The 16-foot cable is most useful when the outlet is near your parking spot. If you want certified, safer Level 1 charging on a budget, this is the type of option to consider.

Compatible Connector	Tesla NACS (Model 3/Y/X/S)
Material	Heavy-duty steel
Installation Hardware	Includes dryer anchors
Holding Capacity	Up to 60 lbs

What We Found

The MECMO Tesla charger holder is more about keeping your cable and connector organized than changing your charging speed. It mounts to the wall and uses a J-hook style dock intended for Tesla NACS plugs for Model 3/Y/X/S. The holder includes a locking mechanism to help prevent the connector from falling out after charging. It’s made with heavy-duty steel and includes dryer anchors for stable installation. The practical benefit for garage placement is support for longer cables—so you can coil and hang the connector securely instead of leaving it sprawled or crossing walkways. What it doesn’t do is provide charging power by itself, since it’s an accessory intended to pair with an existing Tesla-compatible charger setup.

Who It’s For

This accessory is for Tesla owners who want a cleaner, safer garage around where they charge. It helps when a cable frequently crosses walking paths, gets pulled during routine entry, or creates clutter near the parking spot. The locking design supports consistent storage after each session, and the holder is intended for indoor and outdoor use. It’s also useful in garages where storage space is tight. Just note: it’s not a charger, so it won’t solve your amperage or outlet needs by itself.

Level 2 Max Output	240V, 16A (up to 3.84kW)
Current Settings	6A/8A/10A/13A/16A
Delay Timer	0.5–5 hours
Connector Options	NEMA 6-20P + 5-15 adapter

What We Found

The eTimxon 16A Level 1 & 2 portable charger emphasizes adjustable current and easier garage placement management. It supports Level 2 charging at 240V using a NEMA 6-20 plug at 16A (up to 3.84kW). For Level 1 charging, it includes a NEMA 5-15 adapter for 120V use, with guidance that vehicles may limit current for safety. Usability features include a 5-level adjustable current range plus a 0.5–5 hour delay timer, so you can set both the current and schedule before charging begins. It also includes a holder designed to manage cable looping and reduce mess near the garage wall. Like other portable chargers, it lists protections and automatic behaviors intended to avoid unsafe conditions. Overall, it’s a practical way to cover both 120V and 240V charging paths without switching between separate chargers.

Who It’s For

This charger makes sense for garages that already have a NEMA 6-20 outlet and for owners who want one unit that can handle both travel and home charging. The adjustable current range helps you tailor charging to different circuit limitations. It’s also a good fit if you like scheduling around off-peak electricity rates. The included wall-mount style approach is aimed at keeping your cable in the same general “right spot” near where the vehicle parks, which makes daily use less chaotic. It’s intended for J1772 EVs, and Tesla charging typically requires a J1772-to-Tesla adapter strategy.

Max Output Range	6A to 50A
Warranty	3-year limited warranty
Protection Rating	NEMA 4X
Smart Connectivity	WiFi, Bluetooth, Ethernet

What We Found

The Autel MaxiCharger Home offers a wide output range for Level 2 charging, with settings from 6A up to 50A. It supports a hardwired installation approach and lists a 25-foot cable, covering both indoor and outdoor garage placement. Smart management comes through a mobile app and lists connectivity options including Bluetooth, Wi‑Fi, and Ethernet (and additional interfaces), which can help if your home WiFi coverage is inconsistent. It includes a three-year limited warranty, adding some confidence on long-term ownership. For protection, it’s rated NEMA 4X, which is designed for exposure to harsh weather and moisture, and it’s CSA certified with safety testing to UL standards by CSA. For garage placement, the biggest advantage is that adjustable current range—so it can fit more circuit setups without forcing you to replace the unit later.

Who It’s For

This fits owners who want a smart, brand-forward Level 2 charger with the possibility of higher amperage. It’s a good match when daily driving demands faster charging and when you may want the option to adapt to future capacity changes. The wide 6A to 50A range can help you align with different circuit limitations rather than committing to a single fixed output. The app control supports scheduling and monitoring from your phone. Choose it for J1772 EVs and plug-in hybrids, and if you have a non-J1772 standard vehicle, plan for the right adapter needs before buying.

What to Look For Before Buying

A smart EV charger location in a garage starts with what your cable can realistically do and where your EV charge port lands when you park normally. I’d choose a spot that keeps the cable away from walkways and away from areas that regularly collect water or oil. Next, make sure the charger’s plug type or hardwire needs match what your garage can support safely. Finally, prioritize protection ratings and features like scheduling or load management if your household tends to run heavier loads in the evening.

Check Plan the cable path and parking position

Start by mapping the cable path before you commit to a mounting point. Measure from the planned outlet location to the EV charge port with your vehicle parked the way you’d actually park it day to day. Look for a route that avoids door swing, sharp edges, and anything that will tempt you to run the cable across a walkway. If you can, plan the charger so the cable doesn’t need to lie on the floor where it becomes a trip hazard and where wear adds up over time. A 25-foot cable covers a lot of garages, but tight angles and unusual parking layouts can shorten the practical reach—so mark the intended position with tape and make sure it works before you finalize anything.

Value Match the charger to your power setup

Plug-in chargers are easier to justify when you already have the right outlet. NEMA 14-50 plug setups are common in garages and work well when you already have that outlet type available. NEMA 6-20 plug models typically deliver slower Level 2 charging, but they’re often easier to access than a hardwired install. If you’re able to hardwire, you can usually get higher consistent amperage and a cleaner garage setup. The key is to match the charger speed to your real charging schedule, not just the maximum amperage listed on the box.

Rating Use safety and weather ratings as a placement signal

For garages with humidity, snow melt, dust, or chemical exposure, I would treat enclosure ratings as a placement clue—not a footnote. Look for IP and NEMA protection ratings that fit the environment where the charger will sit. Certifications such as ETL/UL/ENERGY STAR style marks can also add confidence. Permanent wall mounting generally reduces the wear that comes from plugging and unplugging repeatedly, especially in harsh conditions. If the charger needs to sit near an area that gets wet, choose stronger enclosure protection and route the cable so it avoids standing water and direct splashes.

Verify Confirm vehicle and connector compatibility early

Compatibility is where placement decisions can get frustrating if you wait too long. J1772 covers most North American EVs, while Tesla vehicles typically require a Tesla-compatible approach (often an adapter strategy, but not all adapters behave the same in real use). Many listings mention adapters, but how you plan to handle Tesla charging affects convenience and reliability. Also, confirm where your car’s charge port sits—some vehicles place it closer to the front fender or the rear bumper, which changes how much cable reach you’ll actually need. Finally, verify outlet voltage and breaker capacity if you’re considering higher-amperage settings.

Frequently Asked Questions

Where in the garage should an EV charger be mounted for easiest daily use?

I’d mount the charger on the wall that lines up best with your EV’s charge port when the car is parked normally. Keep the cable path as short and direct as you can, and avoid stretching it across doors, shelves, or walkways. If possible, placing the charger closer to the electrical panel route can simplify a safer installation. The biggest placement “check” is measuring your charge-port distance so the cable doesn’t end up needing awkward bends or extra slack right where people walk.

Is hardwired charging better than using a plug-in EV charger in a garage?

Hardwired chargers usually deliver higher steady amperage and reduce wear from plug/unplug routines. Plug-in chargers can cut installation cost if you already have the correct NEMA outlet in the garage. Hardwired setups also often allow a cleaner, more permanent wall location that helps reduce clutter. The best option depends on your available electrical capacity, how fast you need to charge, and whether an electrician install is practical for your garage.

What matters most for charging speed when placing the charger in the garage?

Charging speed comes down to the charger’s amperage (and your circuit’s real capacity), plus the specific current mode you select. Placement matters because the cable route affects how safely and comfortably you can connect the vehicle each day. If you’re using load management, that can also raise your usable charging speed by coordinating with other home circuits.

How do weather and garage conditions affect charger placement?

Even garages can get humid, dusty, or cold depending on your region. If exposure is likely, I’d prioritize chargers with strong enclosure protection like IP66 or NEMA 4 ratings. Avoid mounting in spots where water drips onto the unit or where de-icing chemicals regularly splash. And regardless of the rating, route the cable so it doesn’t sit in standing moisture or get constantly splashed by runoff.

Do smart scheduling and energy monitoring change where the charger should be installed?

Smart scheduling mostly changes cost and convenience—it doesn’t decide placement by itself. However, if a charger relies on WiFi or certain monitoring features, you may prefer a mounting spot with a more stable connection or a cleaner wiring route. Load management setups can involve where monitoring hardware gets placed, which can influence the electrician’s approach. In every case, I’d still prioritize safe electrical routing first, then optimize for convenience.

🎯 Final Verdict

For a garage location that balances charging speed, safety, and daily convenience, my top pick is the Emporia Level 2 48A WiFi hardwired charger. It’s built for a permanent wall mount near the electrical route and combines fast output with scheduled charging and real-time energy data—exactly the blend that makes “best location” feel practical. If you want that same idea but still need smart protection against electrical limits, the Emporia Pro adds PowerSmart load balancing. My recommendation is to choose the top pick when a hardwired installation is feasible, then confirm the mount point by measuring your charge-port distance so the cable doesn’t end up trapped behind doors or across walkways.
